GEPRC RX as TX JR-Bay Modification Kit ( 3D-PRINTED KIT )

Summary

The GEPRC RX as TX JR-Bay Modification Kit is a quick and easy DIY solution that takes advantage of the ELRS receiver’s ability to upgrade via firmware into a TX module.

This kit is compatible with a variety of controllers that have a JR bay, and the 3D-printed version features a vibrant, multi-colored shell. It supports 2-6S input voltage and 5V@1A output, ensuring stable power. With three connection options for the receiver and a custom mount designed specifically for GEPRC receivers, installation is hassle-free. The dual-antenna design converts the receiver into a Gemini TX module, while the optional cooling fan ensures smooth operation. Paired with 915M/2.4G dual-frequency T-type antennas, it allows for seamless frequency band switching.

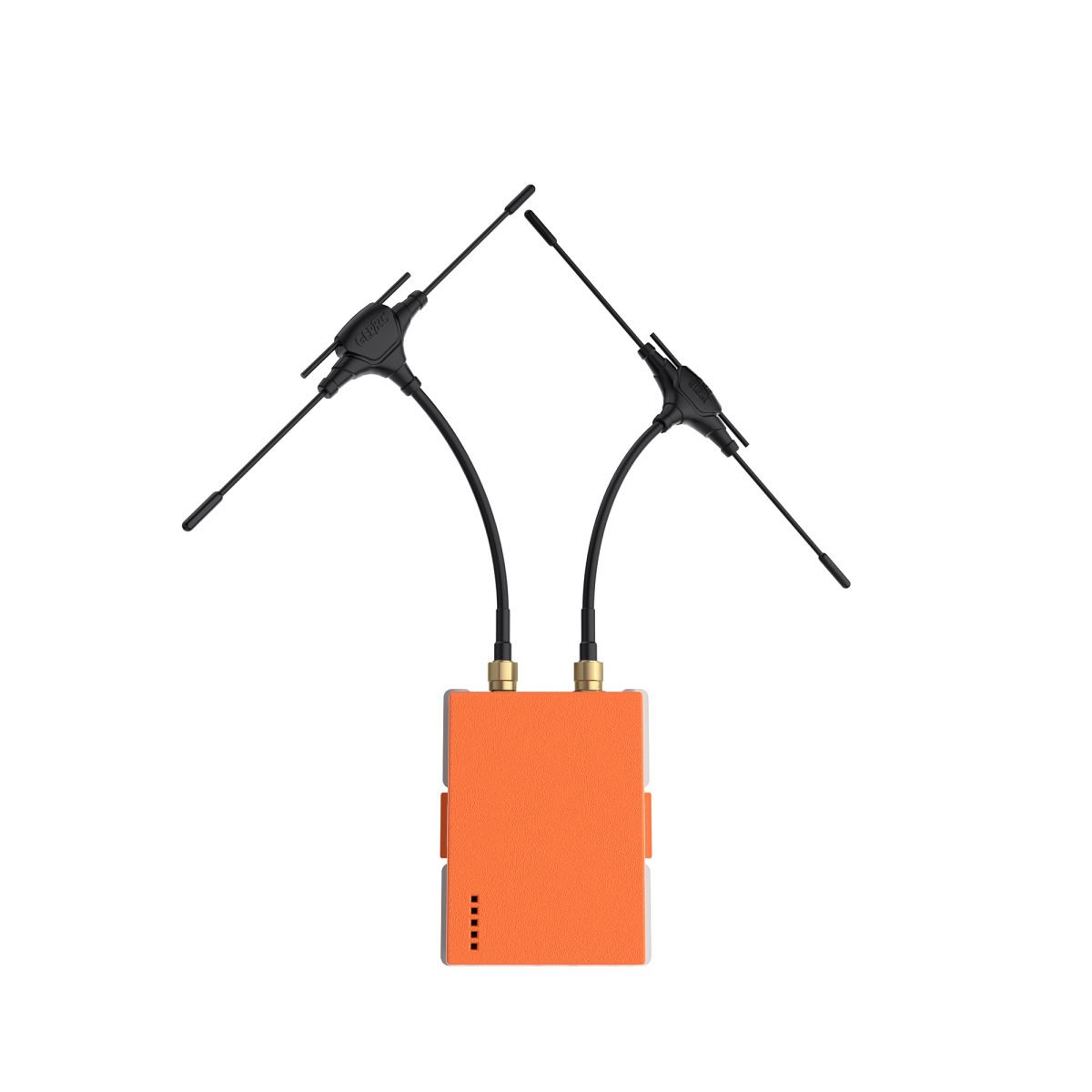

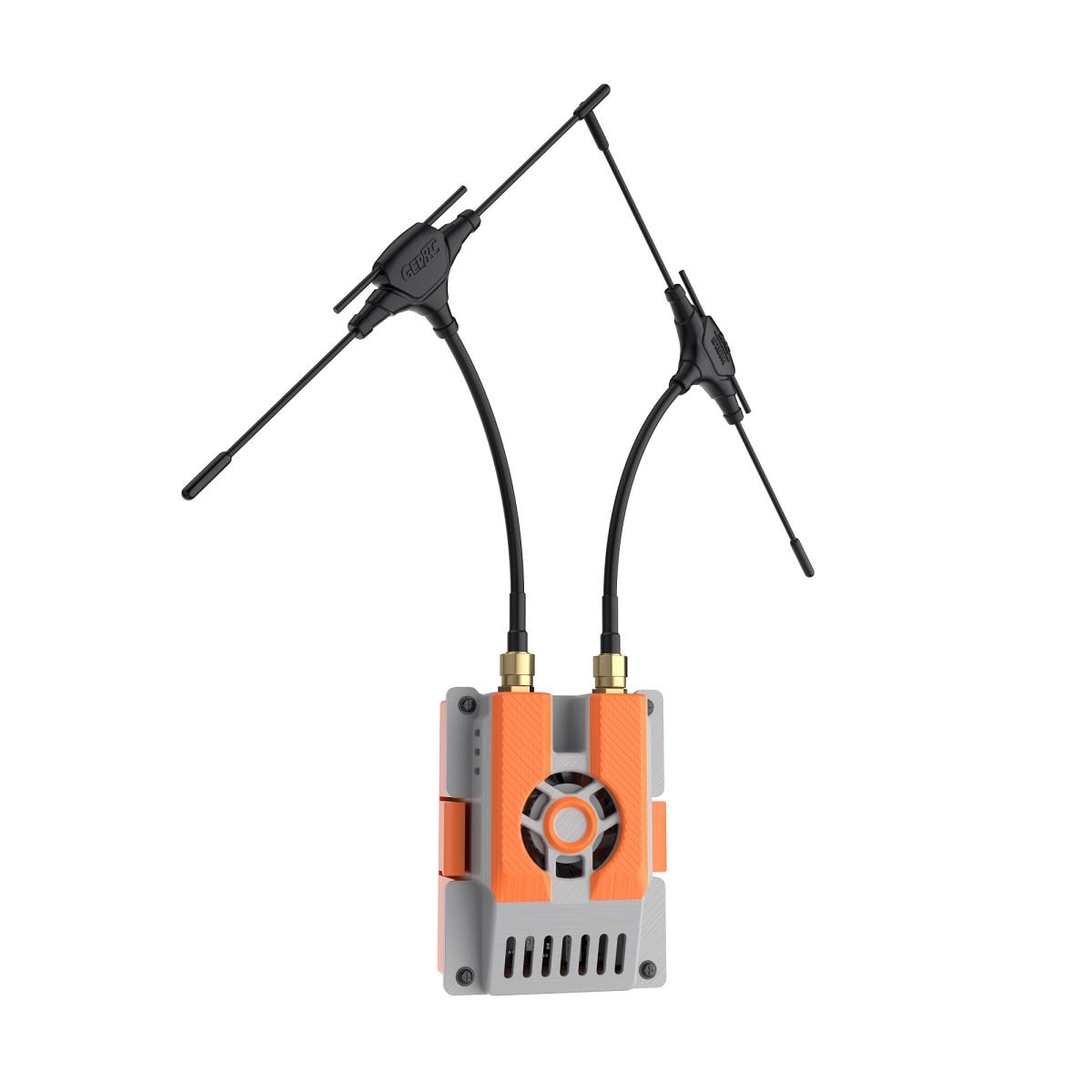

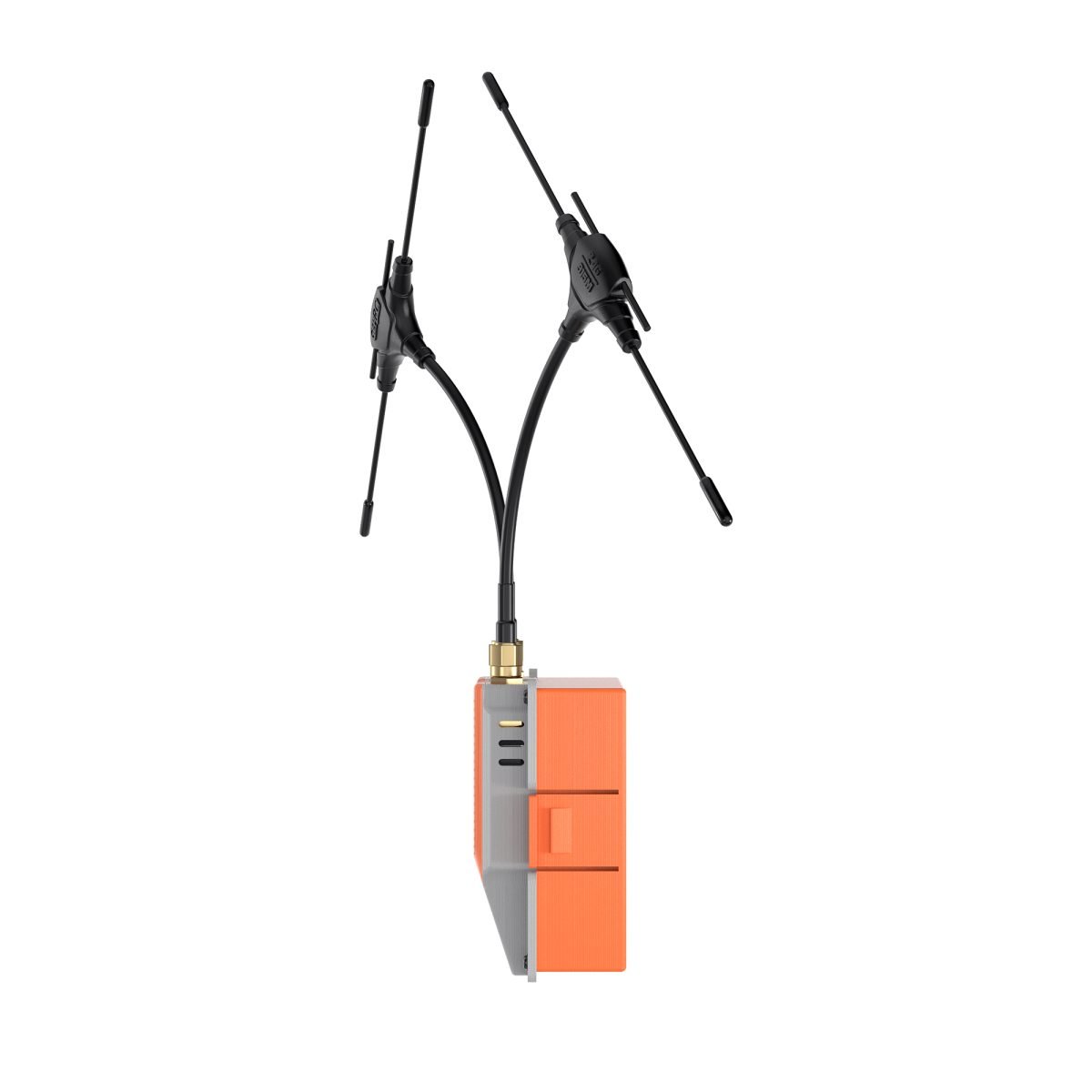

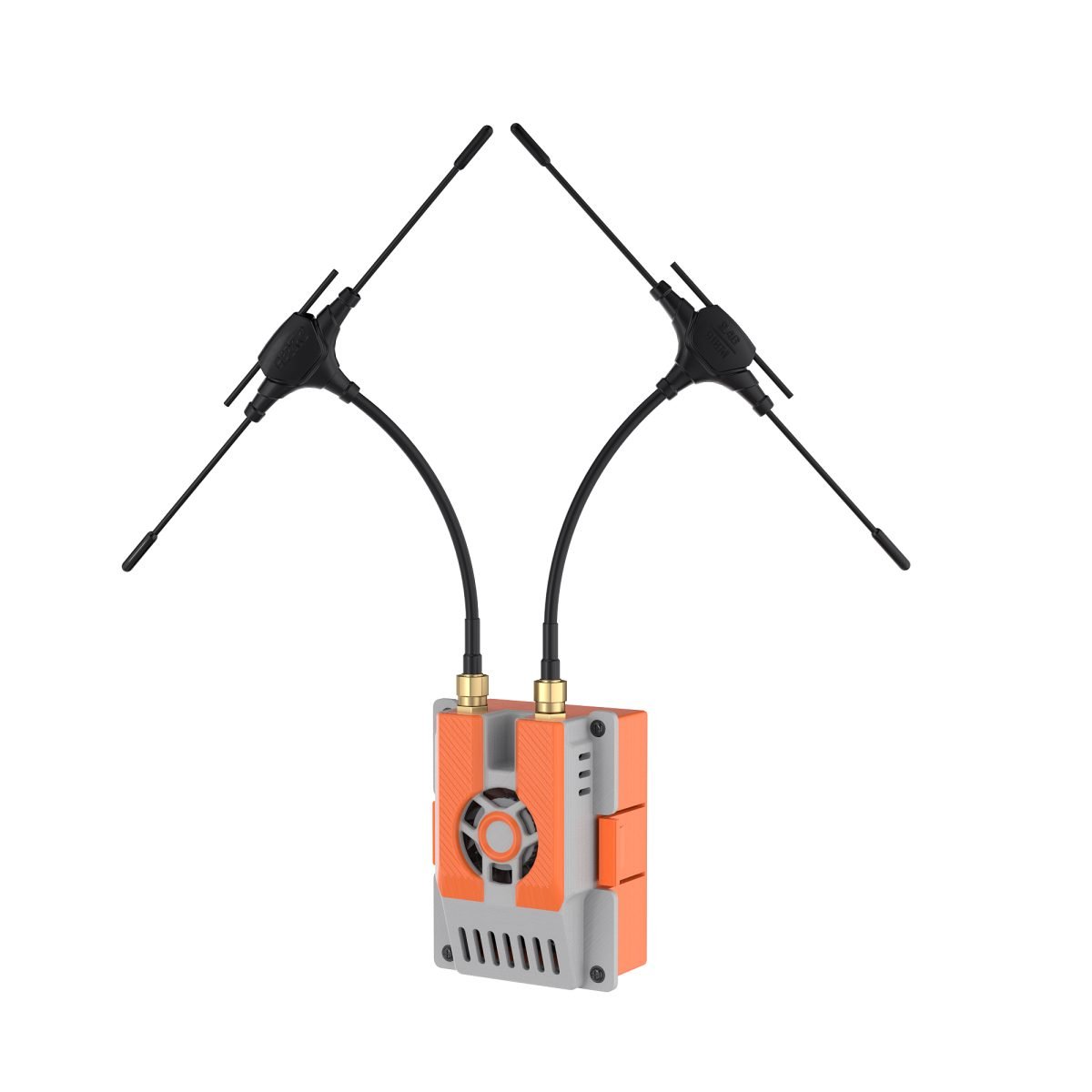

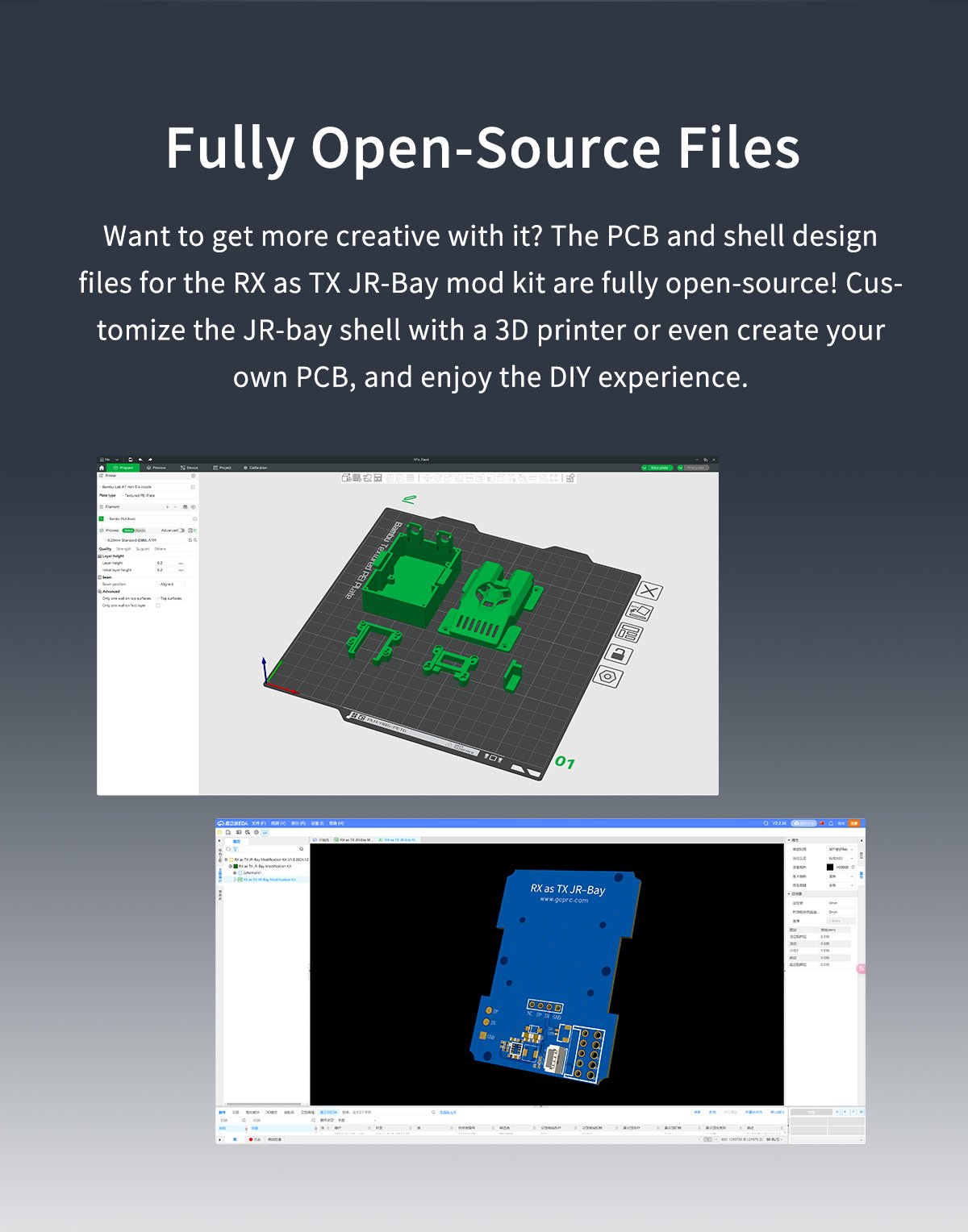

Want to get more creative with it? Download the open-source PCB board and shell design files here: https://geprc.com/support/download/download-the-open-source-pcb-board-and-shell-design-files-here/

You can even design your own JR bay shell or PCB board using a 3D printer, and enjoy the DIY fun! And for the easiest experience, we recommend buying the kit directly from us!

Feature

1.  Compatible with a wide range of controllers featuring a JR bay
2.  Eye-catching multi-color 3D printed shell for a bold look
3.  Handles 2-6S input, with 5V@1A output for steady power
4.  Three connection options for receivers, giving you flexibility
5.  Custom-built mount base for easy, secure installation of GEPRC receivers
6.  Dual antenna design, instantly upgrading to a Gemini TX module
7.  Cooling fan supported
8.  Paired with 915M/2.4G dual-frequency T-type antennas for convenience
9.  Open-source design files to fuel your creativity and expand possibilities

Specifications

• Model: GEPRC RX as TX JR-Bay Modification Kit
• Expansion Bay: JR Bay
• Input Voltage: 2-6S
• Output Voltage: 5V@1A
• Housing Material: PLA
• Number of Antennas: Dual antennas
• Compatible Receivers: Receivers using ESP32 or ESP32-C3 chips
• Connection Method: Soldering, SH1.0 connectors, pogo pins

Installation method

1. Open the ExpressLRS Configurator or navigate to the ELRS online flashing website:https://expresslrs.github.io/web-flasher/;
2.  Select the corresponding receiver model;
3.  In the advanced settings, enable the “RX as TX” option and set it to “external” TX;
4.  Follow the standard flashing procedure to install the “RX as TX” firmware;
5.  Connect the receiver’s GND, 5V, TX to the JR-Bay Modification Kit’s GND, 5V, and SP respectively.
6.  After rebooting, the receiver will function as a TX module.

Includes

Basic Kit Includes

3D-Printed Kit Includes

1 x 3D-printed bottom shell for RX as TX JR Bay
1 x 3D-printed top cover for RX as TX JR Bay
1 x 3D-printed mounting base for GEPRC GemX Gemini receiver
1 x 3D-printed top cover for GEPRC GemX Gemini receiver
1 x 3D-printed mounting base for GEPRC DUAL 915M Diversity receiver
1 x 3D-printed top cover for GEPRC DUAL 915M Diversity receiver
1 x 3D-printed 5-pin connector mounting part
1 x RX as TX JR Bay PCBA board
2 x 915M/2.4G dual-band T-antennas
2 x IPEX1 to SMA right-angle cables (outer thread, inner hole)
1 x Cooling fan
1 x 4-pin pogo pin
1 x 4-pin silicone cable
6 x M2*5 screws
8 x M1.4*6 phillips self-tapping screws
8 x M1.4*8 phillips self-tapping screws
